T503B Gigabit PoE M12 Railway Ethernet Switch
Meet the EN50155 railway industry standard requirements.
Designed for rail transportation applications
With 3×10/100/1000M M12 ports
With 3×PoE(15.4W/30W)
Redundant dual 48VDC(44 to 57VDC) power inputs.
-40 to 75℃ operating temperature range
IP67 waterproof housing
- Product Description
- Product Standard

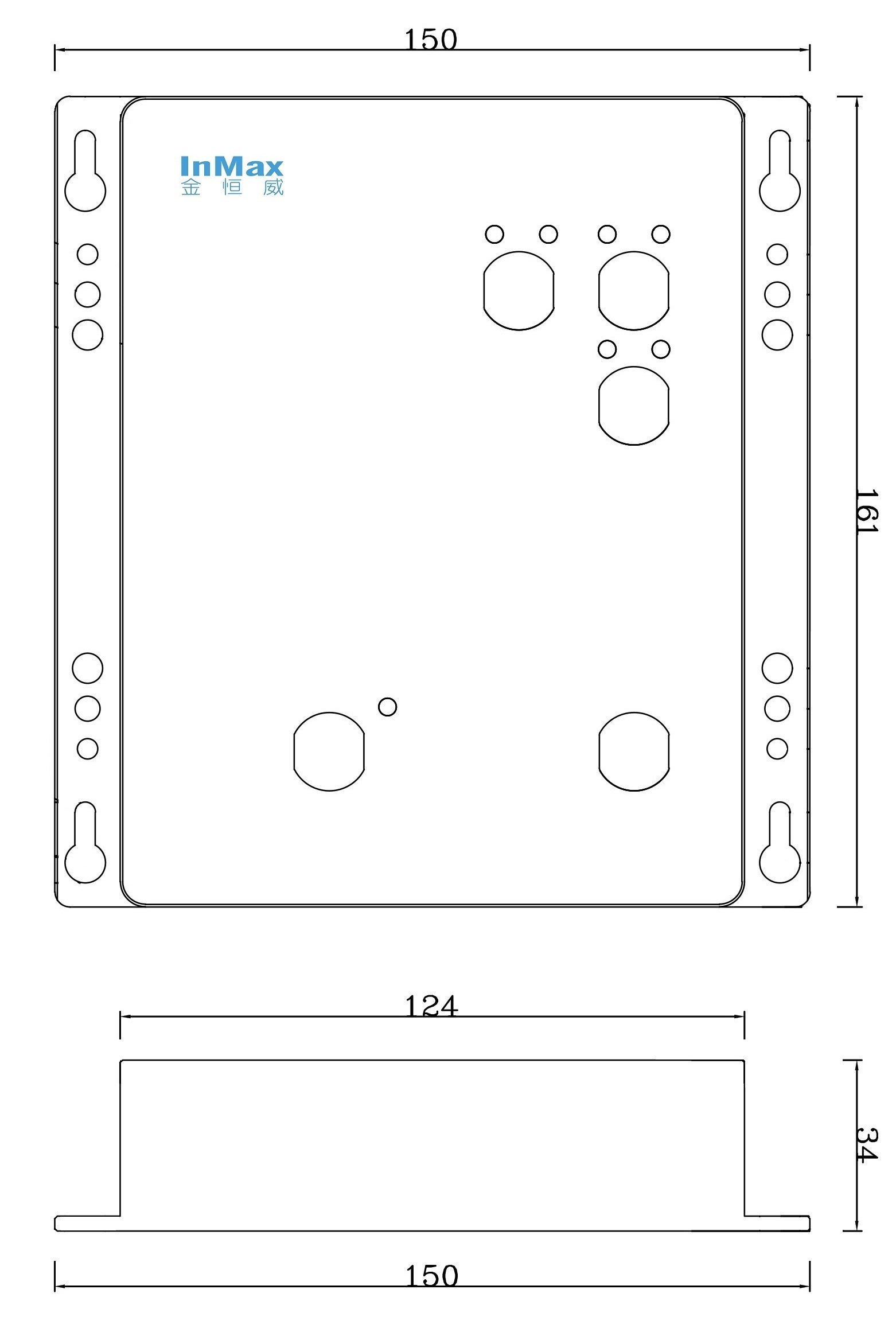

- Product Size
- Ordering Information
The T503B series M12 unmanaged Gigabit Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The T505B series Ethernet switches provide 5 gigabit Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10 / 100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.
No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers’ Ethernet device connection.
